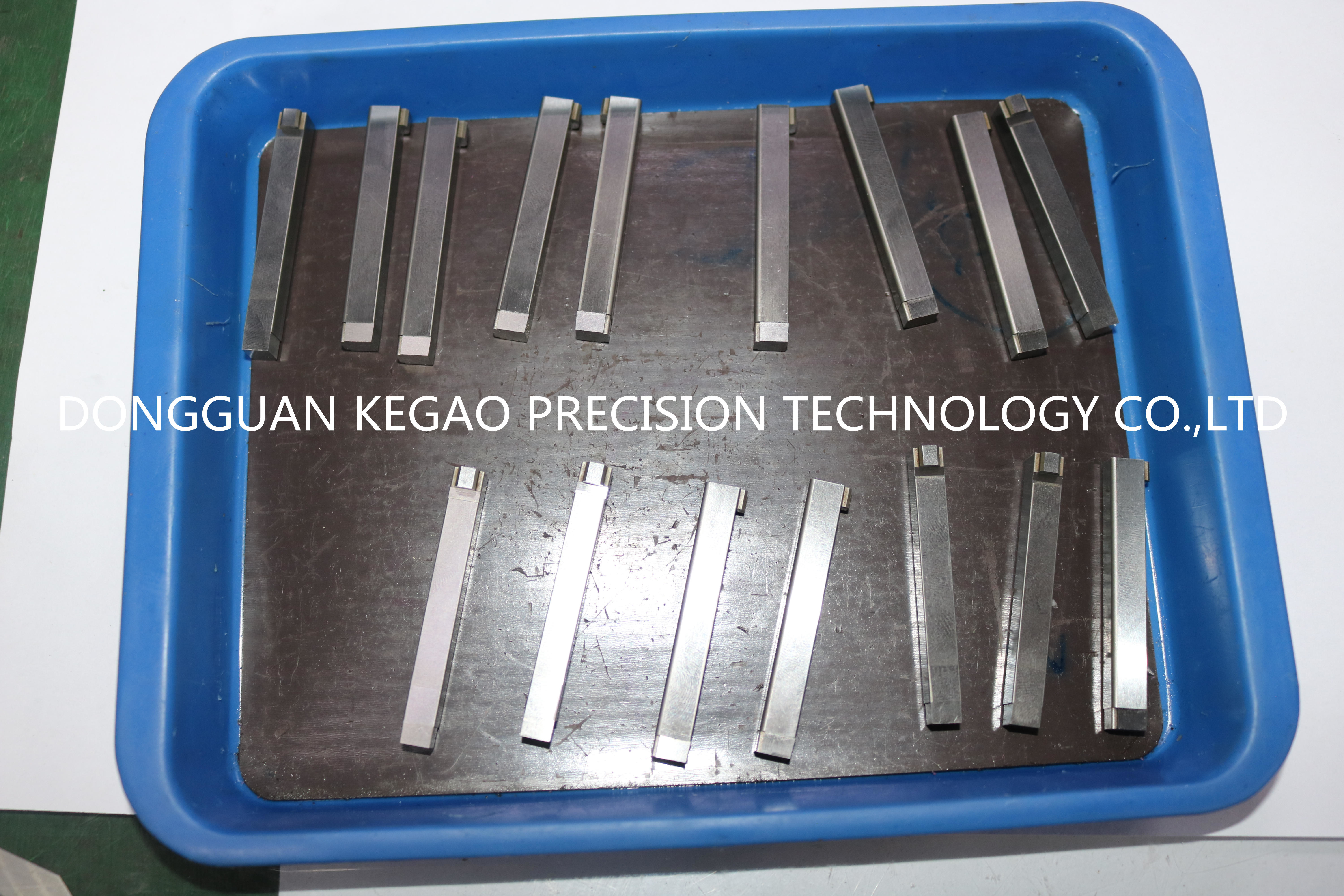

Injection Side Insert For Injection Molding Automotive Parts And
8407 Materia
Description:
| Parts Name: | Injection Side Insert For Injection Molding Automotive Parts And
8407 Materia | Hardness: | 48-52HRC |
| Product size: | Customized/As Per Drawings | Grinding accuracy: | ±0.001mm |
Product material:
| Japan (SKD11.SKD61.SKH51.S45C) | Tolerance: | 0.001mm |
| USA (AISA.D2.H13.P20.M2) | EDM Accuracy: | ±0.003mm |
| Germany (DIN.2379.2363.2344.2347) | Grind Clear Angle Max: | 0.02 |
| ASSAB(Rigor.DIVEAR.Impax.Elmax.VANADIS4.STAVAX) | EDM Angle Max: | 0.02 |
| Process: | Wire Cutting →Grinding | Grinding Finish Ra: | 0.2 |
| Application: | Hight precision medical injection molding parts | EDM Finish Ra: | 0.3 |
| | Wire Cutting Finish Ra: | 0.3-0.4 |
| Processing flow: | Heat treatment →GrindingQuality inspection |
Specification:
Sizecustomized
usageAuto, Medical, Electronic components, ect.
Certificate ISO9001
Shaping modePlastic Injection Mould,plastic injection molding,Die
Casting,Blowing Mould
Product materialPlastic,Steel,Aluminium,ABS,PC
Surface treatmentPolish. Etched. Texture,Polishing,powder
coating),customized(polishing,Smooth
ApplicationCar Parts, Medical parts, Various range
ProductVehicle Mould, Household Product, Household Appliance,
Industrial Eruipment
Tolerance:
+-0.002mm, Depends on customer’s requirements.
Drawing Format:
PDF/DWG/DXF/IGS/STEP,etc
Packaging:
Inner packing with recycle plastic box and anticorrosive oil, outer
with sponge and PE bags, or as customer's requirements.
Application field:
Automobile parts, medical, daily necessities packaging, cosmetic
packaging, etc.
Package style:
Inner packing:wrapped with foam;
Outer packing :carton
Measuring& testing:
Height Gauge, Hardness tester, dimensional detector, projector,
micrometer and so on.
Our Services:
1. More than 13 years professional manufacture experience in this
field.
2. EDM (MITSUBISHI) processing part, our core of EDM processing
part reflect on the dimensional accuracy(2-3um), copy accuracy and
surface roughnessRa0.3), which are able to achieve the mold part
demand for micro connector, mobile,auto,computer connector.
3. WDM-LS(MITSUBISHI) processing part, accuracy 0.0015-0.003mm,
roughness Ra<0.5um.
4. Grinding part, special guys responsible for the equipments daily
maintenance, make sure them work smoothly, Maximum the grinding
accuracy <1um.
5. Custom nonstandard parts, we strict follow your drawings to
produce parts so it can perfect fit your machine, all the parts
accuracy can roughness<Ra0.03, grinding<1um.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is
15-20 days if the goods are not in stock, it is according to
quantity.
Q:How can you ensure the quality?
A:We have QC department to control the quality from the begining of
production until goods finish.
Q:If you make poor quality goods,will you refund our fund?
A:As a matter of fact, we wont take a chance to do poor quality
products. Meanwhile, we manufacture goods quality products until
your satisfaction.
If you are interested, please do not hesitate to contact us! Thank
you!
